자바 웹 개발 개발환경 세팅(9) Spring Project 3

1. JAR 파일 적용하기 (mariadb-java-client-2.6.2.jar)

 - src > main > webapp > resources에 lib 폴더를 생성합니다.

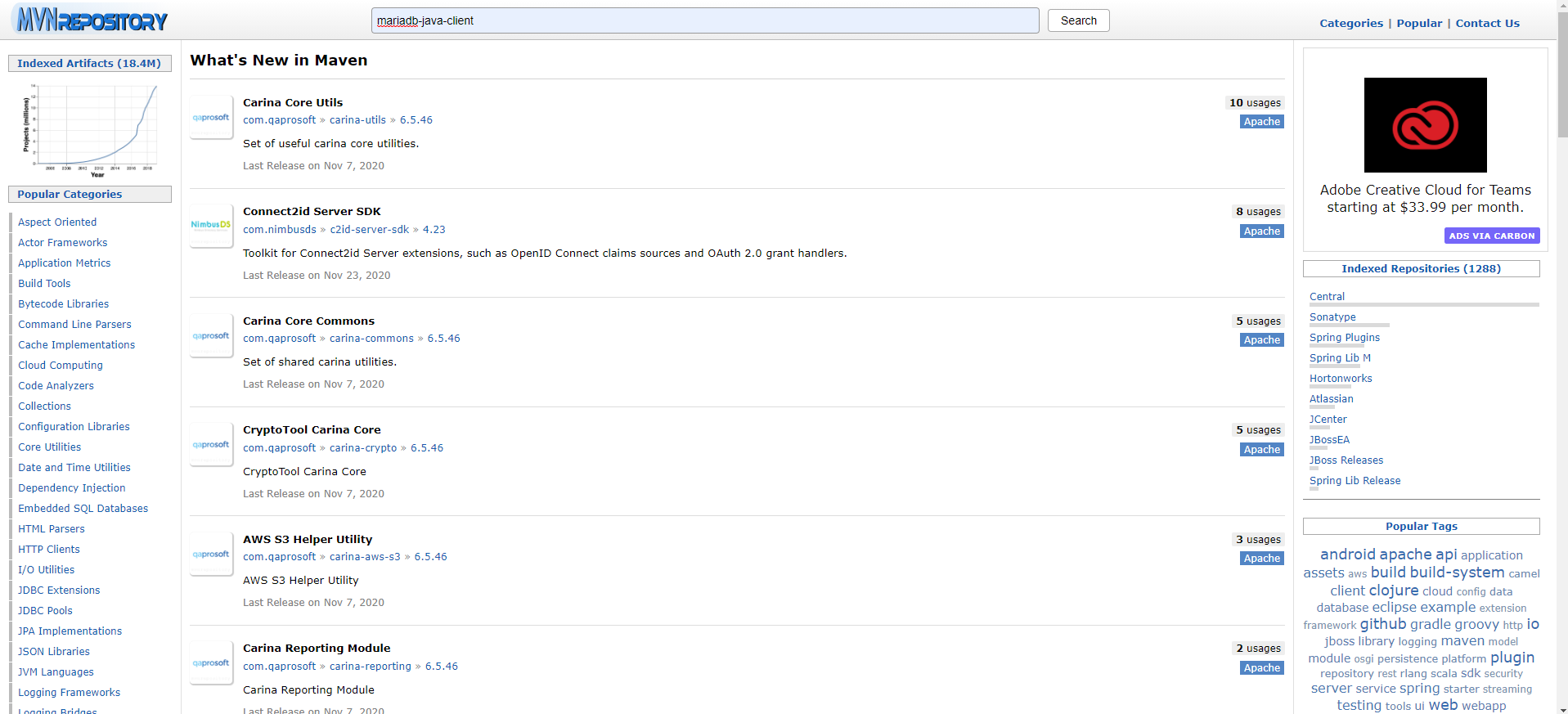

 - mvnrepository.com에 접속 후 mariadb-java-client 검색

 - 맨 위에 있는 mariaDB Java Client 클릭



 - 2.6.2 버전 클릭 후 Files의 jar(606KB)를 다운로드



 - 다운로드 받은 jar파일을 lib폴더에 넣습니다.

 - 해당 jar파일을 우클릭 > Build Path > Add to Build Path 클릭합니다.



2. DB 연결 테스트

 - src/main/resourrces > log4j.xml 파일 우클릭 > Refactor > Rename 클릭 후 log4j2.xml로 이름 변경합니다.



 - log4j2.xml에 아래의 코드를 복사하여 붙입니다.

<?xml version="1.0" encoding="UTF-8"?>
<Configuration status="WARN" monitorInterval="30">
  <Properties>
    <Property name="baseDir">C:/_spring/workspace/logs</Property>
  </Properties>
  <Appenders>
    <Console name="Console" target="SYSTEM_OUT">
      <PatternLayout pattern="%d{HH:mm:ss.SSS}[%t]%-5level %logger{36}-%msg%n" />
    </Console>
    <RollingFile name="RollingFile" fileName="${baseDir}/app.log"
      filePattern="${baseDir}/$${date:yyyy-MM}/app-%d{MM-dd-yyyy}-%i.log.zip">
      <PatternLayout>
        <Pattern>%d %p %c{1.} [%t] %m%n</Pattern>
      </PatternLayout>
      <Policies>
        <TimeBasedTriggeringPolicy />
        <SizeBasedTriggeringPolicy size="20 MB" />
      </Policies>
      <DefaultRolloverStrategy max="20" />
    </RollingFile>
  </Appenders>
    <Loggers>
         <Logger name="java.sql" level="INFO" additivity="false">
            <AppenderRef ref="Console" />
        </Logger>
        <Logger name="jdbc.sqltiming" level="INFO" additivity="false">
            <AppenderRef ref="Console" />
        </Logger>
        <Logger name="com" level="INFO" additivity="false">
            <AppenderRef ref="Console" />
        </Logger>
        <Logger name="org.springframework" level="INFO" additivity="false">
            <AppenderRef ref="Console" />
        </Logger>
        <Root level="debug">
      <AppenderRef ref="Console" />
      <AppenderRef ref="RollingFile"/>
    </Root>
    </Loggers>
</Configuration>
<!-- http://logging.apache.org/log4j/2.x/manual/appenders.html#ConsoleAppender -->
<!-- http://logging.apache.org/log4j/2.x/manual/appenders.html#RollingFileAppender -->

 - Spring폴더 > workspace안에 logs 폴더를 생성합니다. logs 폴더는 logger의 저장소입니다.

- src /test/java > com.project.ctrl에 클래스를 생성합니다.

- 클래스 명 : JDBCTest

 - JDBCTest.java에 아래의 코드를 복사하여 붙입니다.

package com.project.ctrl;
import static org.junit.Assert.fail;

import java.sql.Connection;
import java.sql.DriverManager;

import org.junit.Test;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

public class JDBCTest {
	private static Logger Log = LoggerFactory.getLogger(JDBCTest.class);
	static {
		try {
			Class.forName("org.mariadb.jdbc.Driver");
		} catch (ClassNotFoundException e) {
			e.printStackTrace();
		}
	}
	@Test
	public void testConnection() {
		try (Connection cn =
			DriverManager.getConnection(
					"jdbc:log4jdbc:mysql://localhost:3306/project","root","root")){
			Log.info(">>>jdbc test ok :" +cn);
		}catch(Exception e) {
			fail(e.getMessage());
		};
	}
}

 - JDBCTest.java 우클릭 > Run As > JUnit Test 실행

 - 오른쪽 아래와 같이 >>>jdbc test ok 로그가 뜨면 잘 테스트 완료입니다.



3. 로그 속도 향상

 - 로그가 늦게찍일때 캐싱을 사용해 로그 속도를 좀 더 빠르게 해 줍니다.

 - src/main/resources  에 File 생성합니다.

 - File 명 : log4jdbc.log4j2.properties

 - log4jdbc.log4j2.properties에 아래 코드를 복사하여 붙입니다.

log4jdbc.spylogdelegator.name=net.sf.log4jdbc.log.slf4j.Slf4jSpyLogDelegator



4. Mybatis

 - src/main/resources 에 xml 파일 생성

 - 파일명 : MybatisConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<typeAliases>
		<package name="com.project.domain"/>
	</typeAliases>
</configuration>



5. Web.xml Setting

 - src > main > webapp > WEB-INF > web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.1" xmlns="http://java.sun.com/xml/ns/javaee"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee https://java.sun.com/xml/ns/javaee/web-app_3_1.xsd">

	<!-- The definition of the Root Spring Container shared by all Servlets and Filters -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>/WEB-INF/spring/root-context.xml</param-value>
	</context-param>

	<!-- Creates the Spring Container shared by all Servlets and Filters -->
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- Processes application requests -->
	<servlet>
		<servlet-name>appServlet</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>/WEB-INF/spring/appServlet/servlet-context.xml</param-value>
		</init-param>
		<load-on-startup>1</load-on-startup>
		<async-supported>true</async-supported>
	</servlet>

	<servlet-mapping>
		<servlet-name>appServlet</servlet-name>
		<url-pattern>/</url-pattern>
	</servlet-mapping>

	<filter>
	   <filter-name>encoding</filter-name>
	   <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
	   <init-param>
	       <param-name>encoding</param-name>
	       <param-value>UTF-8</param-value>
	   </init-param>
	</filter>
	<filter-mapping>
	   <filter-name>encoding</filter-name>
	   <url-pattern>/*</url-pattern>
	</filter-mapping>

</web-app>



6. 기본 패키지 생성

 - src/main/resources에 mappers 패키지 생성

 - src/main/java에 com.project.domain 패키지 생성

 - src/main/java에 com.project.persistence 패키지 생성

 - src/main/java에 com.project.service 패키지 생성



7. Root-context.xml Setting

 - DB를 사용하기 위한 Mybatis 세팅입니다.

 - src > main > webapp > WEB-INF > spring > root-context.xml

 - jdbcUrl은 localhost: 포트번호/데이터베이스명, username과 passower는 디비 아이디와 비밀번호를 입력합니다.

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xmlns:aop="http://www.springframework.org/schema/aop"
    xsi:schemaLocation="http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
        http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd
        http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd
        http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">
        <aop:aspectj-autoproxy></aop:aspectj-autoproxy>
    <!-- Root Context: defines shared resources visible to all other web components -->
        <bean id="dataSource" class="com.zaxxer.hikari.HikariDataSource" destroy-method="close">
          <property name="driverClassName" value="net.sf.log4jdbc.sql.jdbcapi.DriverSpy"></property>
          <property name="jdbcUrl" value="jdbc:log4jdbc:mysql://localhost:3306/project"></property>
          <property name="username" value="root"></property>
          <property name="password" value="root"></property>
        </bean>
        <bean id ="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
          <property name="dataSource" ref="dataSource"></property>
          <property name="configLocation" value="classpath:/MybatisConfig.xml"></property>
          <property name="mapperLocations" value="classpath:mappers/**/*Mapper.xml"></property>
        </bean>
        <bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate" destroy-method="clearCache">
          <constructor-arg name="sqlSessionFactory" ref="sqlSessionFactory"></constructor-arg>
        </bean>
        <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
          <property name="dataSource" ref="dataSource"></property>
        </bean>
        <tx:annotation-driven/>

        <context:component-scan base-package="com.project.persistence"></context:component-scan>
        <context:component-scan base-package="com.project.service"></context:component-scan>
</beans>



8. Servlet-context Setting

 - 컨트롤러에서 받은 리퀘스트를 재해석합니다.

 - src > main > webapp > WEB-INF > spring > appServlet > servlet-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xmlns="http://www.springframework.org/schema/mvc"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd
		http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd">

	<!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->

	<!-- Enables the Spring MVC @Controller programming model -->
	<annotation-driven />

	<!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory -->
	<resources mapping="/resources/**" location="/resources/" />

	<!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->
	<beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<beans:property name="prefix" value="/WEB-INF/views/" />
		<beans:property name="suffix" value=".jsp" />
	</beans:bean>

	<context:component-scan base-package="com.project.ctrl" />



</beans:beans>



9. 서버 실행 & 결과





톰캣 설치 및 적용 참고 페이지 : adimkim900.tistory.com/6

자바 웹 개발 개발환경 세팅(5) Tomcat 설치하기
